Zhaofei Wu, Zhonghui Zhang, Juan Wang. Estimating the productive potential of five natural forest types in northeastern China[J]. Forest Ecosystems, 2019, 6(1): 42-42. DOI: 10.1186/s40663-019-0204-0
Citation:
Zhaofei Wu, Zhonghui Zhang, Juan Wang. Estimating the productive potential of five natural forest types in northeastern China[J]. Forest Ecosystems, 2019, 6(1): 42-42. DOI: 10.1186/s40663-019-0204-0
Zhaofei Wu, Zhonghui Zhang, Juan Wang. Estimating the productive potential of five natural forest types in northeastern China[J]. Forest Ecosystems, 2019, 6(1): 42-42. DOI: 10.1186/s40663-019-0204-0
Citation:
Zhaofei Wu, Zhonghui Zhang, Juan Wang. Estimating the productive potential of five natural forest types in northeastern China[J]. Forest Ecosystems, 2019, 6(1): 42-42. DOI: 10.1186/s40663-019-0204-0
Background There is a serious lack of experience regarding the productive potential of the natural forests in northeastern China, which severely limits the development of sustainable forest management strategies for this most important forest region in China. Accordingly, the objective of this study is to develop a first comprehensive system for estimating the wood production for the five dominant forest types.
Methods Based on a network of 384 field plots and using the state-space approach, we develop a system of dynamic stand models, for each of the five main forest types. Four models were developed and evaluated, including a base model and three extended models which include the effects of dominant height and climate variables. The four models were fitted, and their predictive strengths were tested, using the "seemingly unrelated regression" (SUR) technique.
Results All three of the extended models increased the accuracy of the predictions at varying degrees for the five major natural forest types of northeastern China. The inclusion of dominant height and two climate factors (precipitation and temperature) in the base model resulted in the best performance for all the forest types. On average, the root mean square values were reduced by 13.0% when compared with the base model.
Conclusion Both dominant height and climate factors were important variables in estimating forest production. This study not only presents a new method for estimating forest production for a large region, but also explains regional differences in the effect of site productivity and climate.
Northeastern China, accounting for 37% of the country's total forest land, is known for its high diversity of forest types (Zheng et al. 2001). The forests of the region provide indispensable ecological functions and are important for regulating the climate of both the Northeastern Plain and the North China Plain. However, there is a serious lack of information regarding the growth and production of the forests in the region, which has limited the application of sustainable forest management practices. The development of scientific forest management strategies is dependent on accurate descriptions of the current state of the forested areas, and also on accurate estimates of future development. Current information on forest types and growing stock volumes can be obtained from forest inventories taken at one point in time. Estimates of future development are based on growth and yield models (Gadow and Hui 1999; Burkhart 2008; García et al. 2011; Da Cunha et al. 2016).
Due to improvements in statistical methods and computer applications, the traditional yield tables have gradually been replaced by dynamic growth models (Buckman 1962; Clutter 1963; Mora et al. 2012; Burkhart and Tomé 2012). Modeling the growth and yield of uneven-aged forests has received much less attention than that of even-aged forests (Peng 2000). An early uneven-aged growth and yield model for mixed northern hardwood forests was proposed Moser and Hall (1969), which expressed the yield as a function of time, initial volume, and basal area. Many studies regarding uneven-aged growth and yield have been conducted since (Burkhart and Tomé 2012; Choi and An 2016). For instance, Murphy and Farrar (1982) used the same method as Moser-Hall to develop models for the basal area and volume projection of uneven-aged loblolly-shortleaf pine forest stands. Also, Sullivan and Clutter (1972) developed compatible growth and yield models which consisted of a system of equations in to predict both volume and basal area (Clutter 1963).
In China, due to limited data, researchers were more inclined to apply models which could be used to estimate the growth of individual trees (Ren et al. 2008; Zeng et al. 2017). The single-tree growth models were based on the competition relationship between individual trees and their immediate neighbors (Palahí et al. 2008; Zhao 2011). However, the decisions to use tree-level models or stand-level models were dependent on specific objectives (Burkhart and Tomé 2012). The single-tree growth models were only suitable for specific environmental conditions, and the differences in environmental conditions affected the applicability of the models. In addition, it was difficult to estimate the development of an entire forest based on single tree models. Stand growth and production models are required for estimating the development of extensive forest areas. The few existing stand growth models in China were mainly developed for plantations. Unfortunately, these models were often based on limited data sets which tended to limit their applicability (Zang 2016). In addition, the increasing global concerns regarding climate change and ecosystem functions have generated a strong interest in natural forest management strategies (Choi and An 2016). At the present time, there are no unified natural forest stand growth models for the uneven-aged forests of northeastern China. This situation has severely limited the development of sustainable forest management strategies for the region.
Based on a new and extensive set of observations collected in the forests of northeastern China, the objective of this study is to 1) develop dynamic stand models for five main forest types including site and climate variables, and to 2) evaluate the predictive strengths of these models.
Methods
Study area
A network of 384 circular field plots was established in the temperate natural forests of four northeastern provinces (Inner Mongolia, Liaoning, Jilin, and Heilongjiang) in China. Each sample plot covers an area of 0.1 ha. The plots are located between 39°42′48" to 53°19'21" north and 119°48′12" to 134°01'01" east. The sampled area includes eight mountains. The geographical distribution is presented in Fig. 1. The average annual temperature ranges from - 5.57 ℃ to 9.80 ℃, with an average annual precipitation of 363.83 to 1073.72 mm.

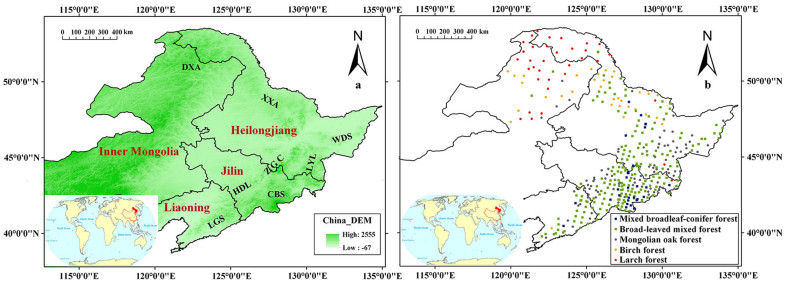

Figure
1.
Geographical distribution of the eight mountains in four provinces (a, on left); distribution of the sample plots within the study area (b, on right): On the left, DXA, XXA, WDS, ZGC, LYL, CBS, HDL, and LGS represent the locations of Da Xing'an Mountain, Xiao Xing'an Mountain, Wanda Mountain, Zhangguangcai Mountain, Laoye Mountain, Changbai Mountain, Hada Mountain, and Longgang Mountain, respectively; On the right, the shape and color of the dots represent the different forest types
The data used in this study were collected during the summer of 2017. In order to represent the natural forests in each of the eight mountain areas, the plots were distributed systematically. The distances between the individual plots ranged from 24 to 60 km, depending on the area of the eight mountains. At each pre-determined sample site, a circle with a radius of 17.85 m was established. A hand-held GPS was used to record the longitude, latitude, and altitude of each of the sites. Trees with a breast height diameter (DBH, measured at 1.3 m above ground level) of 5 cm or more were labeled with numbers. For each sample tree, the species, DBH, height, and location (which were determined by the north deviation angle and distance) were recorded.
In addition, an increment borer with an auger diameter of 5.15 mm was utilized to extract an increment core from the north side of each tree at a height of 1.3 m. The increment core of each tree had to pass through the tree center, and its length was required to exceed 2 cm. In order to consider short-term abnormal fluctuations in ring widths which may have been caused by climatic extremes, a five-year mean was adopted, as suggested by Gadow and Hui (1999). The two five-year periods' (2007 to 2012 and 2012 to 2017) radial increments of each tree were recorded to the nearest 0.01 mm. The two five-year periods' diameter increments (id1, id2) were used to reconstruct the 2012 and 2007 diameters at breast height (DBH12, DBH07) by subtracting id1 and id2. Thus, the bark thickness was supposed to be constant during the last 10 years. Also, the breast height ages of 15% of the tallest trees were assessed using increment cores.
The volume of each sample tree was calculated using the available stem volume equations for different species in the various regions (listed in Additional file 1). In the current study, it was not possible to include the effects of mortality and ingrowth in the estimate. Five stand variables were calculated for each plot as follows: (1) Dominant height (Hdom, m) defined as the mean height of the 15% tallest trees; (2) age (A), defined as the average breast height age of the dominant trees; (3) number of trees per hectare (N); (4) stand basal area (G, m2∙ha- 1); and (5) stand volume (V, m3∙ha- 1). In addition, the daily values of the mean temperature and total precipitation were obtained for the period ranging from 2007 to 2017 at a 0.5° latitude-longitude spatial resolution from the KNMI Climate Explorer, which is a research tool used to assess the climate conditions in different regions of the world (https://climexp.knmi.nl). This study also used an Inverse Distance Weighted (IDW) interpolation method in the ArcGIS 10.4.1 software to assign the values to the plot locations. The growth season temperature and precipitation values (GST and GSP) of each survey plot were thus obtained. The frequency distributions of the seven variables used for the model development are presented in Fig. 2.

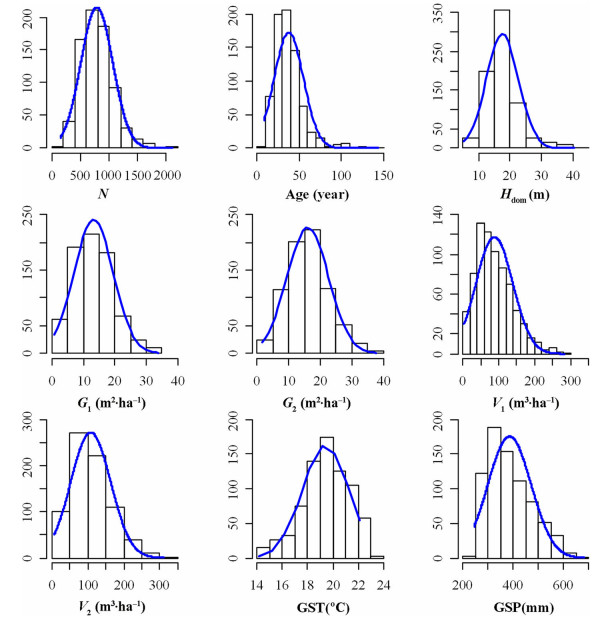

Figure
2.
Frequency distributions of the main variables of the two five-year periods with fitted trend lines: N indicates the number of trees per hectare; Age and Hdom are the average age and height of dominant trees, respectively; V1 and V2 denote the stand volumes of the initial and final phases of the two five-year periods, respectively; G1 and G2 are the basal areas of the initial and final phases of the two five-year periods, respectively; and GST and GSP are the mean growth season temperatures and precipitation of the two five-year periods, respectively
In order to stratify the observations according to forest type, the 384 plots were classified into five forest types based on the volume proportions of the different tree species in each plot (Table 1, Additional file). These types are referred to in this study as follows (the summary statistics are listed in Additional file 3): Broad-leaved mixed forest (192 plots); mixed broadleaf-conifer forest (30 plots); Mongolian oak forest (92 plots); larch forest (37 plots); and birch forest (33 plots). The dominant broad-leaved species are Quercus mongolica, Betula platyphylla, Tilia amurensis, Betula davurica, Ulmus japonica and Acer mono; the main coniferous species are Pinus koraiensis, Abies nephrolepis and Larix gmelinii.
Table
1.
Classification standard used in China for different forest types
Forest type
Classification based on volume proportion
Pure forest
Single tree species ≥65% of total volume
Coniferous mixed forest
Coniferous species ≥65% of total volume
Broad-leaved mixed forest
Broad-leaved species ≥65% of total volume
Mixed broadleaf-conifer forest
Broad-leaved or conifer species account for 25%-65%
The Sullivan and Clutter (1972) model is a widely used and arguably one of the most logical and effective systems for estimating forest production (see a recent detailed description in Burkhart and Tomé 2012). The system has been used in many studies, and found to give good results (Borders 1989; Zhao 2011; Burkhart and Tomé 2012):
lnV1=a0+a1SI+a2t−11+a3lnG1
(1)
lnG2=(t1t2)lnG1+b0(1−t1t2)+b1SI(1−t1t2)
(2)
lnV2=lnV1+c0(t−12−t−11)+c1(lnG2−lnG1)
(3)
where a, b, and c represent the estimated coefficients; SI is the stand site index which characterizes the stand site quality; t1 and t2 are the ages of the initial and predicted periods, respectively; V1 and V2 denote the stand volumes of the initial and predicted periods; G1 and G2 are the basal areas of the initial and predicted periods.
Equation 1 is based on Schumacher's equation describing a static forest, which utilizes the predictions of the current stand volumes from the site index, along with the ages and stand basal areas (Schumacher 1939; Borders 1989; Burkhart and Tomé 2012). Equation 2 can be used to estimate the future basal areas based on the existing stand states. Actually, Eq. 1 can be used for estimating both V1 and V2. This system was found to be consistent with the logic of forest development:
(1)When t2 → t1, then lnG2 → lnG1
(2)When t2 → +∞, then lnG2 → b0 + b1SI, which indicates that the future area of the stand will gradually stabilize and conform to the growth trend of the stand;
(3)Therefore, the model will be compliant with the compatibility principle which was previously described by Clutter (1963) and Clutter et al. (1983).
Extended model
The model in the current study is based on an original model proposed by Sullivan and Clutter (1972). We deleted Eq. 3 of the reference model. In addition, some variables were deleted, others added. Four systems of equations were finally selected for this study, as detailed in Table 2. Each system contained two equations, and the site index (SI) of the original model was deleted resulting in the basic stand production model (M0).
Table
2.
The four systems of equations developed and examined in this study
a, b, and c are the estimated coefficients; Hdom indicates the dominant height, t1 and t2 are the age of the initial and predicted periods, respectively; V1 and V2 indicate the stand volume of the initial and predicted periods, respectively; G1 and G2 are the basal area of the initial and predicted periods, respectively. GST and GSP are the growth season temperatures and precipitation
Site index, expressed by the average height of the dominant trees at a specific reference age, has become one of the most widely used variables used in forest growth modeling (Clutter et al. 1983; Monserud and Sterba 1996; Skovsgaard and Vanclay 2008; Guo et al. 2012). It appears that there is no general index to reflect the site quality for uneven-aged forests. We decided to select dominant height to reflect the site condition of these natural forests (see Gül et al. 2005; Pinto et al. 2008). Therefore, dominant height was included in the first extended model referred to as M1 (Table 2).
Climate variables, such as temperature and precipitation, are known to directly affect the productive potential of forest ecosystems. In addition, climate variables have indirect impacts on forest productivity via species composition and nutrient cycling (Rustad et al. 2012; Ratcliffe et al. 2016; Morin et al. 2018). In the current study, model M2 includes two climate variables added to the base model (M0). Finally, a third extended model (M3) uses both dominant height and climate factors. In this study, the average height of the dominant trees (Hdom) was used while climate was expressed by the average regional temperatures during the growing season (GST, ℃) and the growing season precipitation (GSP, mm).
Parameter estimation and model comparison
The parameter estimates and fit statistics of the four model systems were evaluated to determine if they were significantly different from zero using an asymptotic t-test (Álvarez-González et al. 2010; Temesgen et al. 2014). The results of the estimates are based on the numerical and graphical analyses of the residuals. During the analysis, three statistical criteria were examined (Table 3): 1) bias (¯E), which evaluates systematic deviations of the model from the observations; 2) root mean square error (RMSE), which measures the precision of the estimates and any bias in the equation; and 3) model efficiency (MEF), which indicates the proportion of the total variance explained by the model, adjusted for the number of model parameters and observations.
Table
3.
Criteria used to evaluate the performance of the models
¯E
RMSE
MEF
∑ni=1(yi−ˆyi)n
√∑ni=1(yi−ˆyi)2n−p
1−(n−1)∑ni=1(yi−ˆyi)2(n−p)∑ni=1(yi−¯yi)2
yi, ˆyi, and ¯yi are the observed, predicted, and average values of the dependent variable, respectively; n is the number of samples used in fitting the function; and p indicates the number of model parameters
During model evaluation, we first assess whether there is a significant difference in the deviation of the different models. Subsequently, the model with the largest MEF and lowest RMSE was prioritized based on the smallest difference. Following that, three indices of the different models were evaluated for each forest type. After analyzing the results, the optimum model was selected for each type of forest. For all 384 plots, broad-leaved mixed forest (192 plots) and Mongolian oak forest (92 plots), 70% of the samples were used for model development and comparison. Independent samples from the remaining plots were then used for evaluating the optimal model. Due to the restricted number of samples, all plots of the other three forest types (mixed broadleaf-conifer forest (30 plots); larch forest (33 plots); and birch forest (37 plots)) were used to develop the models, and evaluated using bias, RMSE, and MEF. After evaluating the "three-stage least squares" (3SLS) technique (Zellner and Theil 1992), we fitted all four models with the "seemingly unrelated regression" (SUR) technique (Zellner 1962). The "systemfit" package within the R programming environment (R version 3.5.1) was used to implement the method.
Results
Stand growth
The data set covers a wide array of stand densities, with the number of trees∙ha- 1 ranging from 150 to 2100; stand volumes ranging from 6.77 to 310.4 m3∙ha- 1; and basal areas from 1.60 to 37.69 m2∙ha- 1 (Fig. 2). As can be seen in Fig. 3, the plots are sorted by the total volume and basal area which had accumulated in the final phase of the two five-year periods. In the figure, the differences in stand volume increments (VI) and basal area increments (BAI) of each plot are shown by the orange area. VI varied from 3.0 to 50.0 m3∙ha- 1 and BAI from 0.6 to 6.5 m2∙ha- 1 across the sites. In addition, the VI and BAI were determined to be related to the initial stand density. When the initial stand density was very low, the stand productivity had been significantly affected, which will be discussed in detail in the section "Implications for sustainable forest management".

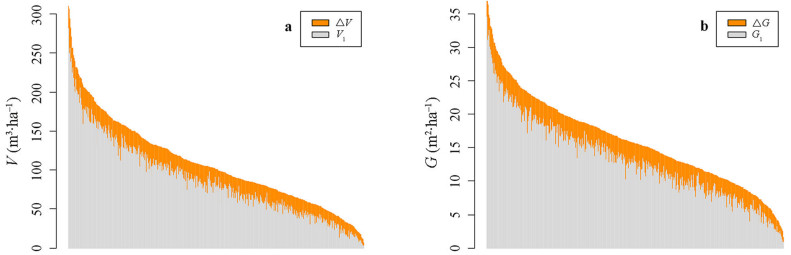

Figure
3.
Stand volume (V; a, on left) and basal area (G; b, on right) of each survey plot at the end of the two five-year periods. The grey area represents the amount of accumulation during the initial phase (V1 or G1), and the orange area represents the increase during the two five-year periods (ΔV or ΔG)
The state-space approach used in this study implies that the future state of the system can be predicted if the current state of the driving variables is known (Tewari and Gadow 2005; Álvarez-GonzÁlez et al. 2010; Tewari et al. 2014). In the current study, the applied base model and the extended models had provided adequate performances across the six forest types. The biases of the equations were found to be small, and there were no significant differences in deviation among the four models. However, the M3 model performed slightly better, as shown in Table 4. Based on the RMSE results, noticeable differences were observed among the predictive abilities of the models for the different forest types. Also, the RMSE values of the three extended models were significantly reduced, as detailed in Table 5. The third extended model (M3), which includes both Hdom and climate factors, had the lowest RMSE for almost all of the forest types, with an average reduction of 13.0% compared to the base model. The model evaluation results of the MEF were found to be consistent with those based on RMSE. In other words, the three extended systems show adequate performances for all the forest types. M3 has the lowest RMSE and the highest model efficiency for the majority of the forest types, as shown in Tables 5 and 6. For the different forest types, the model efficiencies of the two equations had reached averages of 0.968 and 0.961, respectively. Regarding the different forest types, the RMSE evaluation results show that the prediction accuracy of the model which are based on the different forest types was higher. For example, for the M3 model, the RMSE decreased by 17.1% for all forest types, by 20.7% for the mixed broadleaf-conifer forest, and by 13.9% for the Mongolian oak forests.
Table
4.
Bias estimates of the four models for the different forest types
Bias
N
Trees
Base Model
Base Model + Hdom
Base Model + Climate
Base Model + Hdom & Climate
Eq. 1
Eq. 2
Eq. 1
Eq. 2
Eq. 1
Eq. 2
Eq. 1
Eq. 2
All
384
30,135
-0.333
0.983
0.090
0.583
0.550
0.910
-0.043
0.556
Broad-leaved mixed forest
192
15,284
-0.441
0.717
-0.264
0.479
0.263
0.678
-0.214
0.464
Mixed broadleaf-conifer forest
30
2748
-1.218
0.932
-0.668
0.601
2.764
0.652
0.735
0.566
Mongolian oak forest
92
7097
-0.097
1.104
0.004
0.433
-0.845
0.880
-0.242
0.404
Larch forest
37
2314
-0.280
0.418
-0.245
0.314
-0.077
0.428
-0.183
0.280
Birch forest
33
2692
-0.217
0.446
-0.171
0.446
0.188
0.430
-0.114
0.431
Bold numbers indicate the lowest bias value of each equation across all of the models for a given forest type
All of the selected models were convergent and had provided sufficient performances in the different forest types. Most of the estimated parameters of the two equations were significantly different from zero (Table 7). All of the three extended models had improved the predictive abilities of the base model. Therefore, by including either dominant height or climate factors in the base model, the model MEF had increased and the RMSE values had decreased. When the two equations were considered, the inclusion of dominant height (M1) provides superior predictive abilities when compared with the model which had included only the climate factors (M2). The M3 model has the lowest RMSE and the highest MEF for all of the forest types and provides the highest accuracy, as well as the best efficiency. Therefore, the combination of dominant height and climatic factors had produced superior results more often than when each factor had been added individually. In the current study, based on the aforementioned results, the prediction and simulation abilities of the M3 model showed the best performance results when compared with the three other models. Therefore, M3 was selected as the common model for the entire study region.
Table
7.
Estimated parameters for the selected growth model (M3) for each forest type
Forest type
All
Broad-leaved mixed forest
Mixed broadleaf-conifer forest
Mongolian oak forest
Larch forest
Birch forest
N
384
192
30
92
37
33
Trees
30,135
15,284
2748
7097
2314
2692
Eq. 1
a0
1.3957***
1.4079***
1.7628***
1.3226***
1.9215***
1.5099***
a1
0.0151***
0.0120***
0.0100**
-0.0038ns
0.0019*
0.0170***
a2
-2.0886***
-2.2830***
-4.1406***
-0.7157*
-1.247**
-1.7083*
a3
1.1049***
1.1180***
1.0500***
1.2122***
1.0747***
1.0173***
Eq. 2
b0
1.1418***
3.0958***
6.1632***
0.5858ns
-0.9892ns
3.8268*
b1
0.0837***
0.0820***
0.0741***
0.1261***
0.0410***
-0.0250ns
b2
0.0168ns
-0.0377*
-0.1250**
-0.0010ns
0.0960*
-0.0356ns
b3
0.0018***
0.0001ns
-0.0022**
0.0025***
0.0069**
0.0022ns
*indicates a significance at the p < 0.05 level; ** indicates a significance at the p < 0.01 level; *** indicates a significance at the p < 0.001 level; and ns indicates no significance was observed
The experimental testing of the model with new and independent data provided an overall check of the entire model construction process. During the testing of the selected model, all survey plots, broad-leaved mixed forest and Mongolian oak forest were validated with independent data. The predicted stand volume and basal area results versus the observed stand volume and basal area results for the remaining 30% of the samples are displayed in Fig. 4. Additional file 3 shows the sensitivity analysis of the selected model. The use of the selected models and the coefficients listed in Table 7 had increased the precision of the estimates for the different forest types of northeastern China.

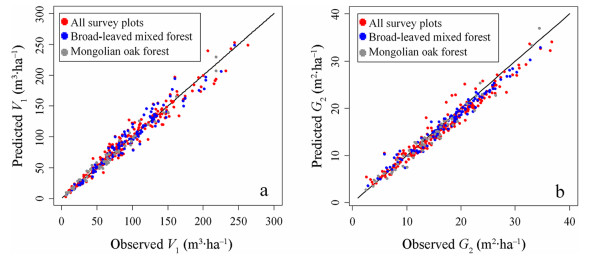

Figure
4.
Predicted versus observed stand volume (a, on left) and basal area (b, on right) for the three forest types. The colors represent the different forest types; G2 is the basal areas of the initial phases of the two five-year periods; and V1 is the stand volumes of the initial phases of the two five-year periods
Understanding the dynamics of forest development is important for calculating sustainable forest use and for evaluating alternative forest management strategies. Our study is a first attempt to estimate such dynamics for a large, diverse and important natural forest region where forest production models are not yet available. Compared with even-aged forest growth models, which have been extensively studied, natural forest stand growth models are more challenging (Burkhart and Tomé 2012). Previous studies have shown certain relationships between site conditions and dominant height of uneven-aged forests (Huang and Titus 1993). Dominant height alone does not fully express all of the required environmental information (Carmean 1975; Pokharel and Dech 2011; Weiskittel et al. 2011), but it is a useful first alternative. The inclusion of dominant height in the base model was found to increase the model MEF and reduce the average RMSE value by 8.9%, as detailed in Tables 5 and 6. These findings are consistent with the results of numerous previous studies (Gadow and Hui 1999; Weiskittel et al. 2011; Chave et al. 2014; Mensah et al. 2017).
Considering the extensive and widely distributed forests of northeastern China, with varying temperature and precipitation levels, each geographical location will affect forest productivity and ecosystem functions. Further studies are needed extend the applicability of this first model, especially since evidence regarding climate change impacts on forest productivity has been expanding continuously in the recent past, and some of the changes in growth have already been observed (Sánchez-Salguero et al. 2012; Ruiz-Benito et al. 2014; Spathelf et al. 2014). In order to investigate whether climate factors can replace dominant height, climate variables alone were added to the base model (M0) in the form of M2. However, it was found that there was no significant improvement when compared to M0. It was found that for the majority of the forest types, the results of the M2 model were even less efficient than those of M1 (Tables 5 and 6). The evaluation indicates that none of the dominant height and climate factors were individually sufficient to fully express the contributions of environmental factors to forest production.
Lei et al. (2016) have shown that a traditional growth and yield model has the potential to be modified to function as a climate sensitive model by including climate factors. As expected, the third extended model (M3), which includes both dominant height and climate factors, produced results that are superior to those of a traditional growth model (see similar results by Rustad et al. 2012; Ratcliffe et al. 2016; Morin et al. 2018). According to the results, the productivity of stands increased with increasing temperature and precipitation for all forests combined (Table 7). This is logical because adequate precipitation provides sufficient moisture for tree growth. In addition, summers with higher temperatures can increase cambium activity and contribute to the accumulation of photosynthates, which is vital for latewood cell-wall thickening (Rossi et al. 2006). But different results were found in the different forest types. The Birch forest type has the same trend as all forests combined. For the Broad-leaved mixed forest, Mongolian oak forest and Birch forest, temperature had a negative effect on forest productivity. Studies on the temperature response of photosynthetic carbon uptake indicate the existence of an optimum temperature for photosynthesis. Photosynthesis increases with increasing temperature until it reaches an optimum, beyond which rates decrease. The decrease is related to stomatal closure and increased rates of respiration (Lin et al. 2012; Slot and Winter 2017). In addition, the relationship between photosynthesis and temperature may be affected by precipitation. Excessive rainfall is usually coupled with increased cloudiness and reduced solar radiation at the forest canopy below photosynthetic light saturation (Slot and Winter 2017). For the mixed broadleaf-conifer forest, stand productivity is negatively correlated with temperature and precipitation. We have no straight forward explanation for this result, either because of the complexity of the species composition or due to the limitation of the number of samples. Higher photosynthesis and productivity require balanced hydrothermal conditions, which may have different effects of climate variables in the different forest types. This study shows that our selected model has better predictive performance in uneven-aged natural forests than the traditional growth modeling approaches which did not include climatic factors. In future research, the current network of temporary plots will be gradually replaced by a permanent observational network, which will improve essential estimates of forest dynamics, including ingrowth, mortality and response to disturbances.
Implications for sustainable forest management
The practical problem of sustainable forest management in China's northeastern region is that not enough information is currently available regarding the changes in volume and basal area growth over time in the different forest types of the region. This has been found to severely limit the successful development of sustainable forest management strategies. In our study, the third extended model including both dominant height and climate factors showed superior performance. Future forest management strategies should be flexibly formulated according to the climate differences in a region in order to sustain forest ecosystems more effectively (Lindner et al. 2014).
In addition, it appears that there is no general answer to the question whether the density-production relation is asymptotic or whether there is a stand density that results in maximum production (Pretzsch 2005). Is it possible to increase volume production of a very dense forest by thinning or is production at a maximum under self-thinning conditions? Our observations, presented in Additional file 4 for six forest types, do not provide a straightforward answer. The only conclusion that can be made is that, at low basal areas, there is a steep rise in production with increasing density.
Our observations do not show a clear evidence of transgressive growth caused by thinning, such as found by Pretzsch (2005). One could speculate that there may be a distinct unimodal frontier, with maximum production at about 25 m2∙ha- 1, but our data do not allow a clear and consistent interpretation, which is to be expected in forests with a variety of species mixtures and site conditions. This result is consistent with the finding in an afromontane forest (Gadow et al. 2016). The general assumption is that forest production is not asymptotic and will eventually decrease as density reaches very high levels (Vanclay and Henry 1988; Corral Rivas et al. 2016). However, we cannot confirm or reject this assumption because there is a lack of very high densities in our datasets. Pretzsch (2005) found that the growth of Picea abies reacts most positively to thinning under poor site conditions while increment is reduced on favorable sites. Recent research shows that the density effect on growth depends on the specific species mixtures and site variables (Oliver and Larson 1996; Corral Rivas et al. 2016). The ability to quantify such effects remains to be an important topic for future studies.
Conclusions
Based on a large set of 0.1 ha forest plots, this study presents a new scientific basis for estimating the productive potential of the natural or near-natural forest resources of northeastern China. Model performance was improved by including regional climate variables. The new system of equations, extensively tested using independent data sets, may be used to estimate production of six different forest types under different climate scenarios. In addition, the relatively simple form and convenient use of the new forest model makes it suitable as a first scientific basis for decision support. This will enable forest managers to calculate sustainable use and develop improved management strategies for different local conditions. The results, although preliminary, can already contribute to improving resource planning and management in this important forest region of China.
Additional file 1. List of the volume equations of different species in the four provinces.
Additional file 2. The volume proportions of the different tree species in each plot.
Additional file 3. Summary statistics of the main stand variables for each forest type and sensitivity analysis of the selected model.
Additional file 4: Figure S1. Density-production relations for six forest types.
Abbreviations
3SLS: Three-stage least squares technique; A: Average age of dominant trees; BAI: Basal area increments; DBH: Breast height diameter; DBH07: Diameters at breast height in 2007; DBH12: Diameters at breast height in 2012; E: Bias; G: Stand basal area; GSP: The growth season precipitation; GST: The growth season temperatures; Hdom: Dominant height; id1: Diameter increment in 2007–2012; id2: Diameter increment in 2012–2017; IDW: Inverse Distance Weighted; M0: Basic stand growth model; M1: The first extended model; M2: The second extended model; M3: The third extended model; MEF: Model efficiency; N: Number of trees per hectare; RMSE: Root mean square error; SI: Site index; SUR: Seemingly unrelated regression; V: Stand volume; VI: Stand volume increments
Acknowledgements
Not applicable.
Authors' contributions
ZW and JW analyzed the data and led the writing of the manuscript. JW and ZZ designed the experiments and collected the data. All authors read and approved the final manuscript.
Availability of data and materials
The datasets used during the current study are available from the corresponding author on reasonable request.
Ethics approval and consent to participate
Not applicable.
Consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
